GradFix is a multilingual civic issue reporting platform being developed as part of the Studio Present AI-Driven Development internship. Citizens can report problems from a phone with a photo and map location, follow progress in real time, and see issues on a public map. Municipal staff get a tenant-aware admin workflow for triage, assignment, work orders, notifications, and resolution tracking.

WebNext.jsReact.jsTailwindShadcn-UITypescriptPrismaPostgreSQLSonnerAIGeminiAPIMobileImagesRealtimeMonorepoWork/Internship
July 10, 2026•Strahinja
Live Website

GradFix

GradFix is a multilingual civic issue reporting platform built for Serbian municipalities. Citizens can report problems from a phone with a photo and map location, follow progress in real time, and see issues on a public map. Municipal staff get a tenant-aware admin workflow for triage, assignment, work orders, notifications, and resolution tracking.

The project is being developed as part of the Studio Present AI-Driven Development internship and is structured around a live demo loop:

citizen report -> public map -> admin queue -> accept/assign -> status update -> work-order PDF -> citizen notification

What It Does

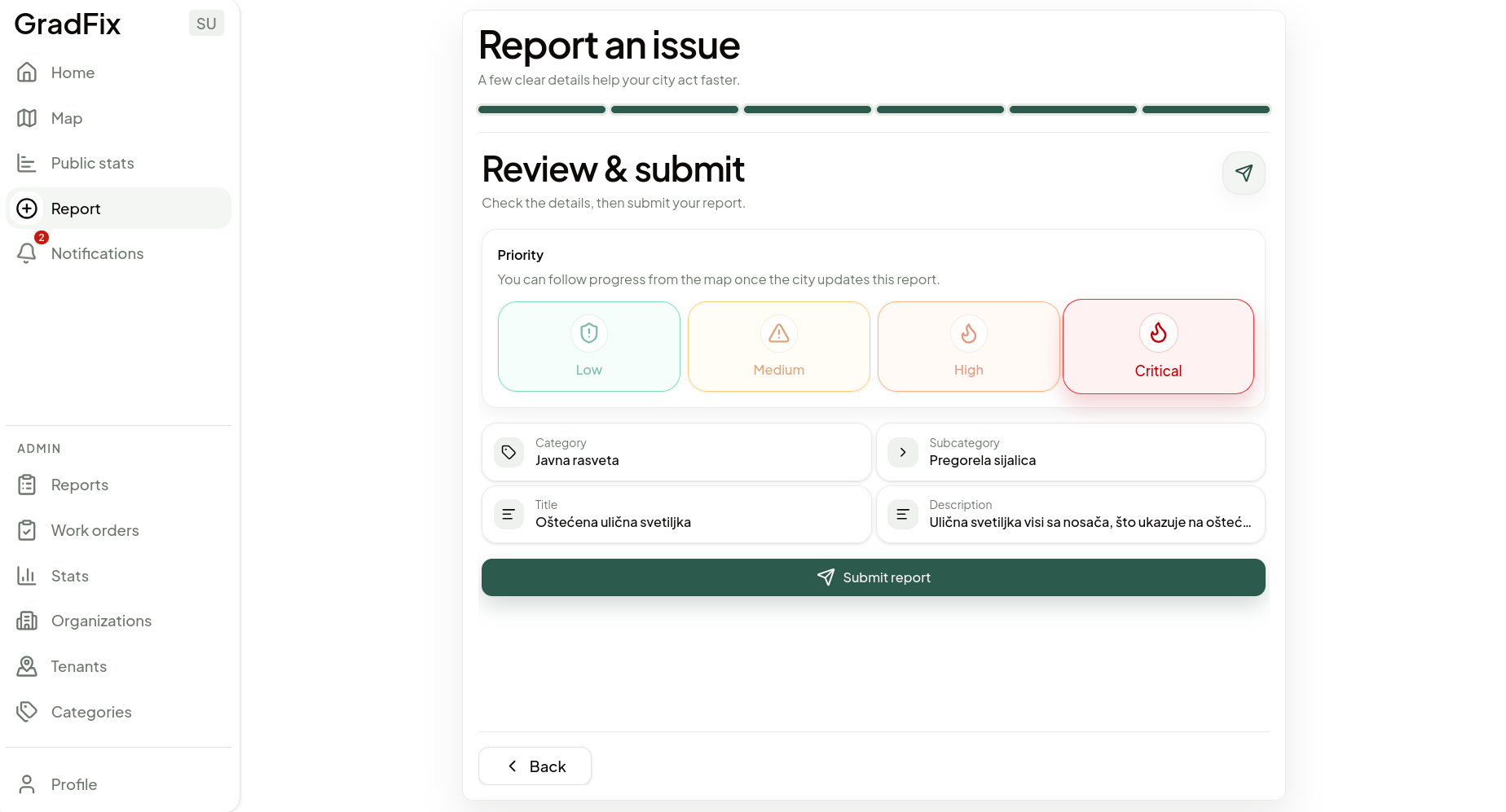

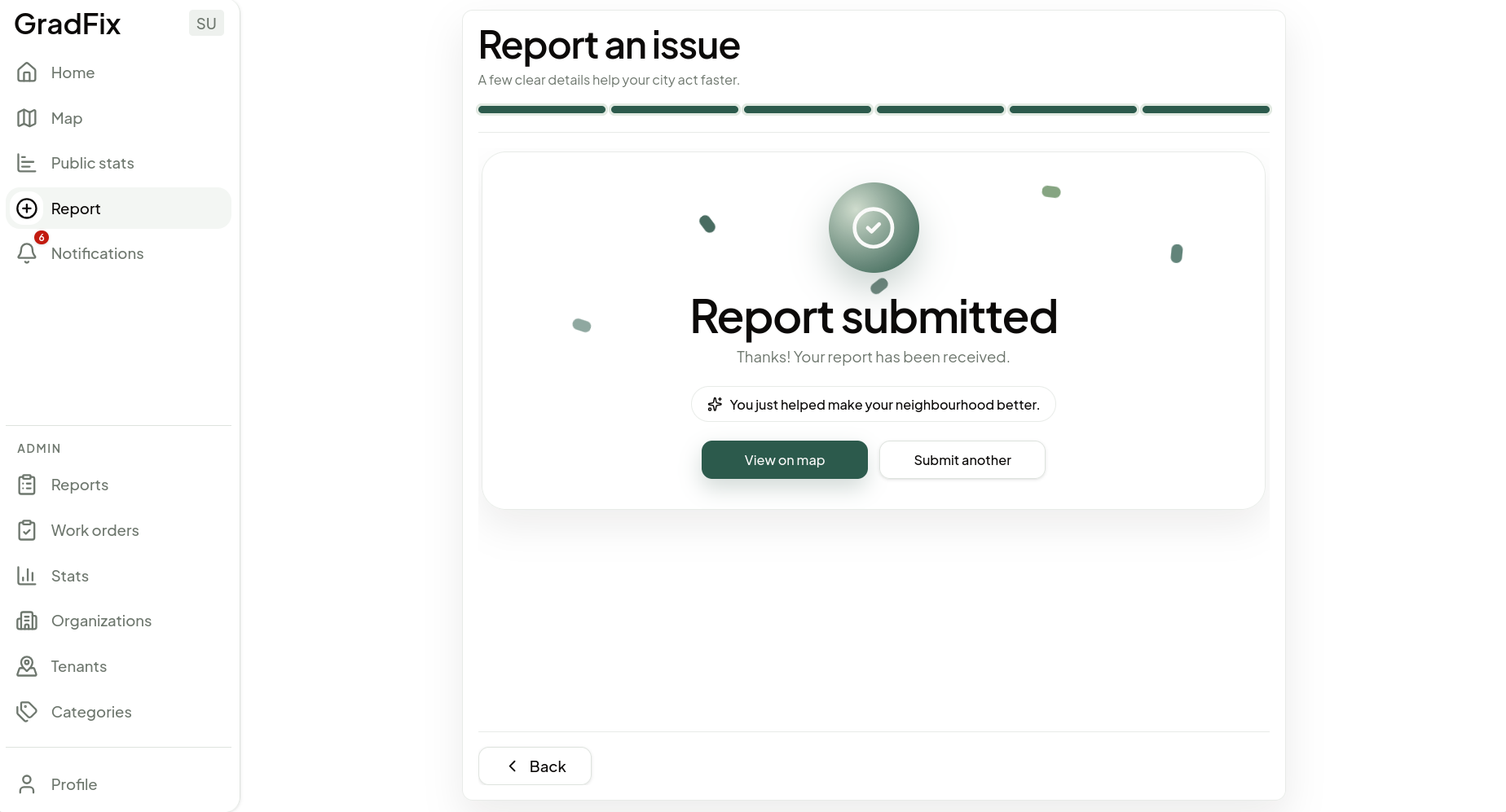

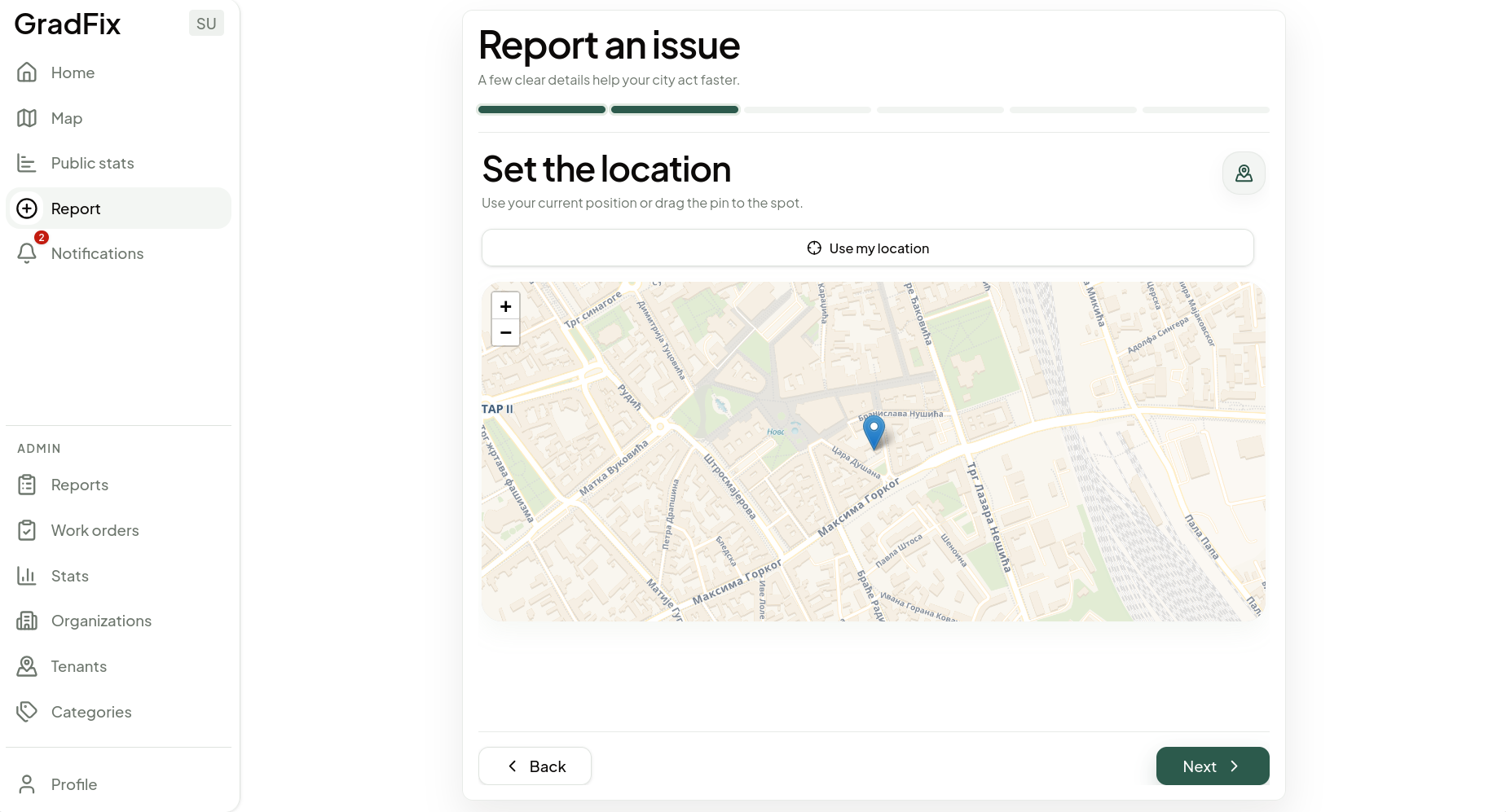

  • Mobile-first report submission with photo upload, geolocation, category selection, and step-by-step guidance

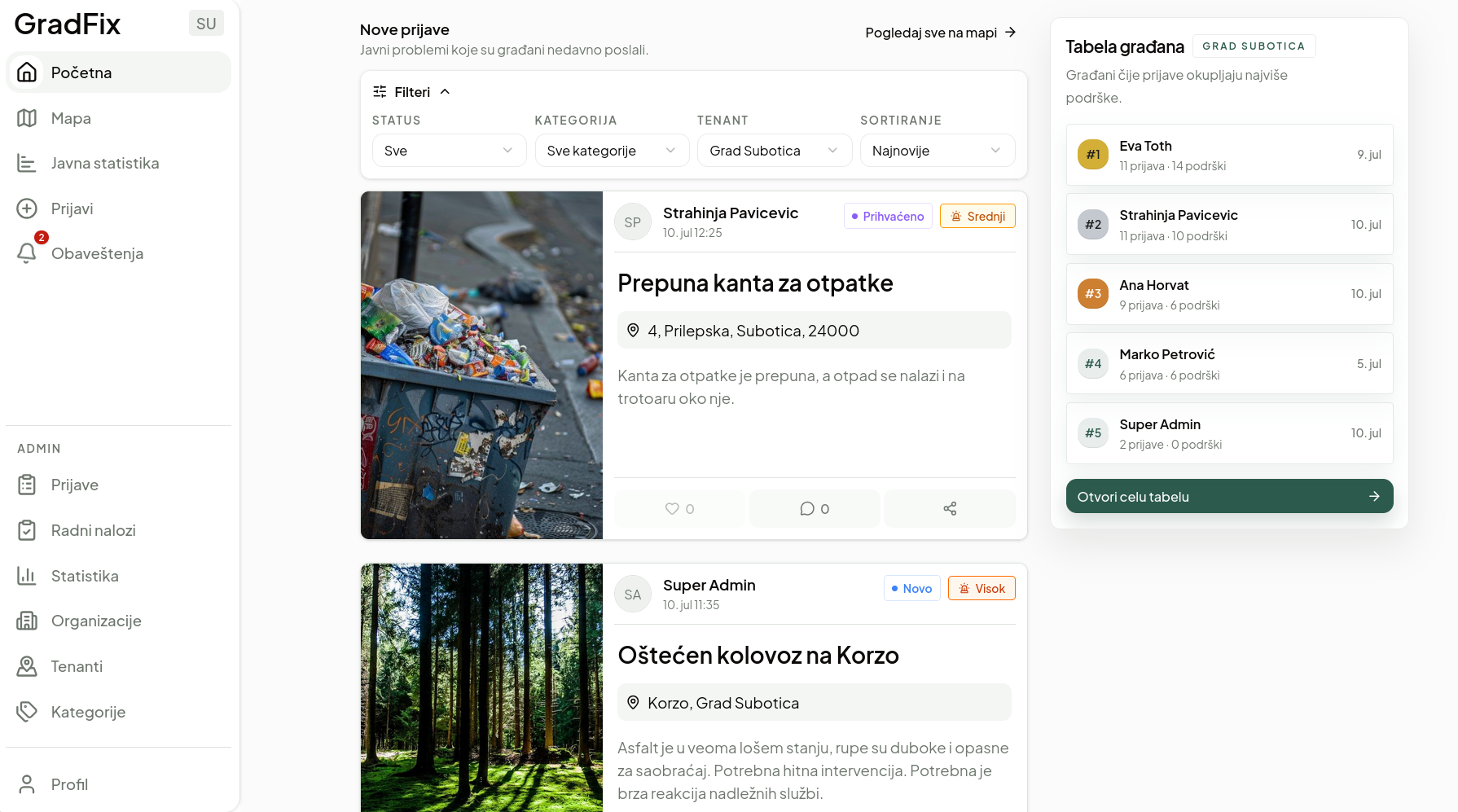

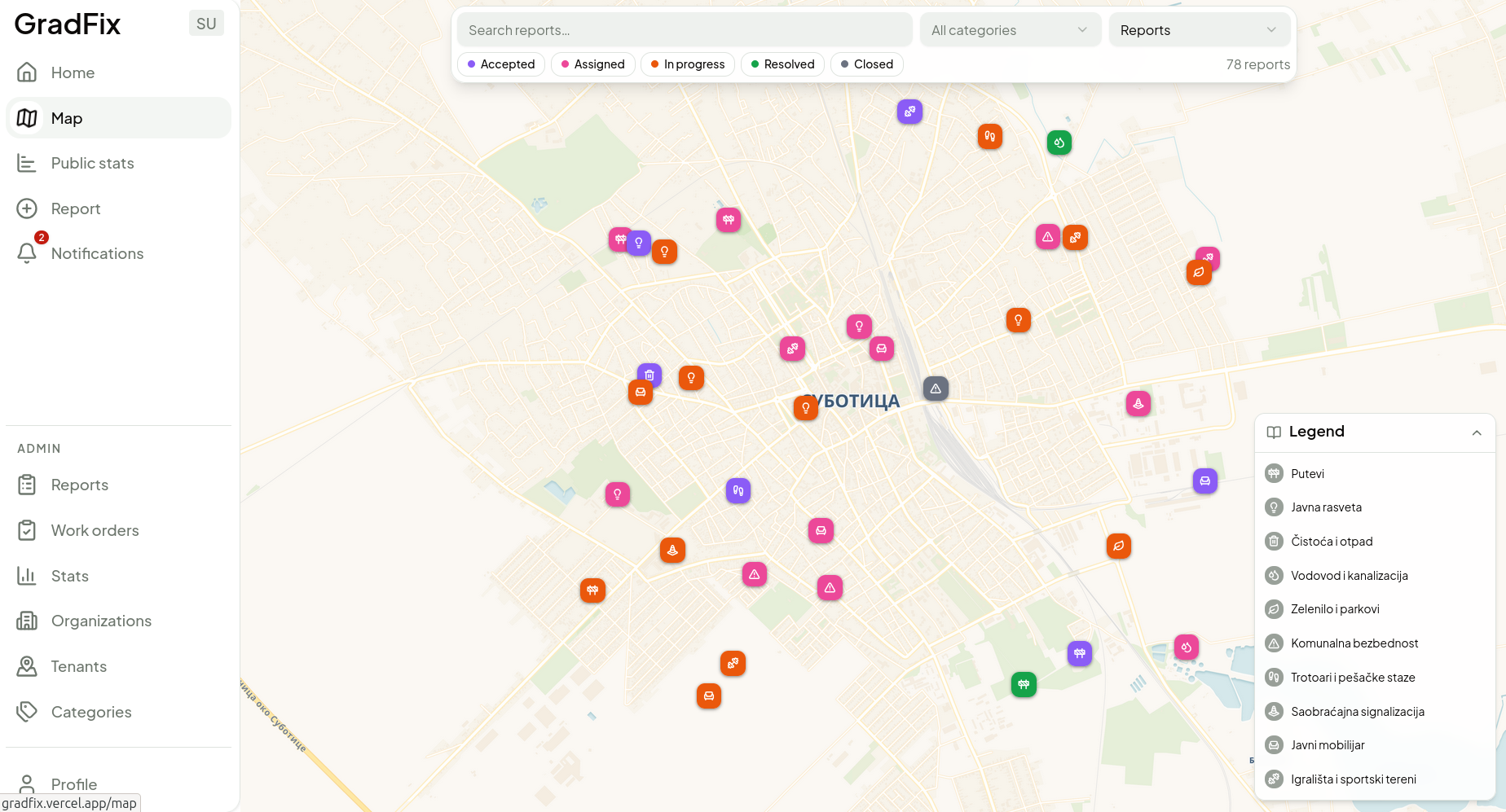

  • Public cross-tenant issue feed with map view, filtering, and heatmap mode
  • Installable PWA with offline support and install guidance
  • Multi-tenant authentication with JWT access tokens and refresh cookies
  • Role-based admin workflow for reviewers, conductors, tenant admins, and super admins

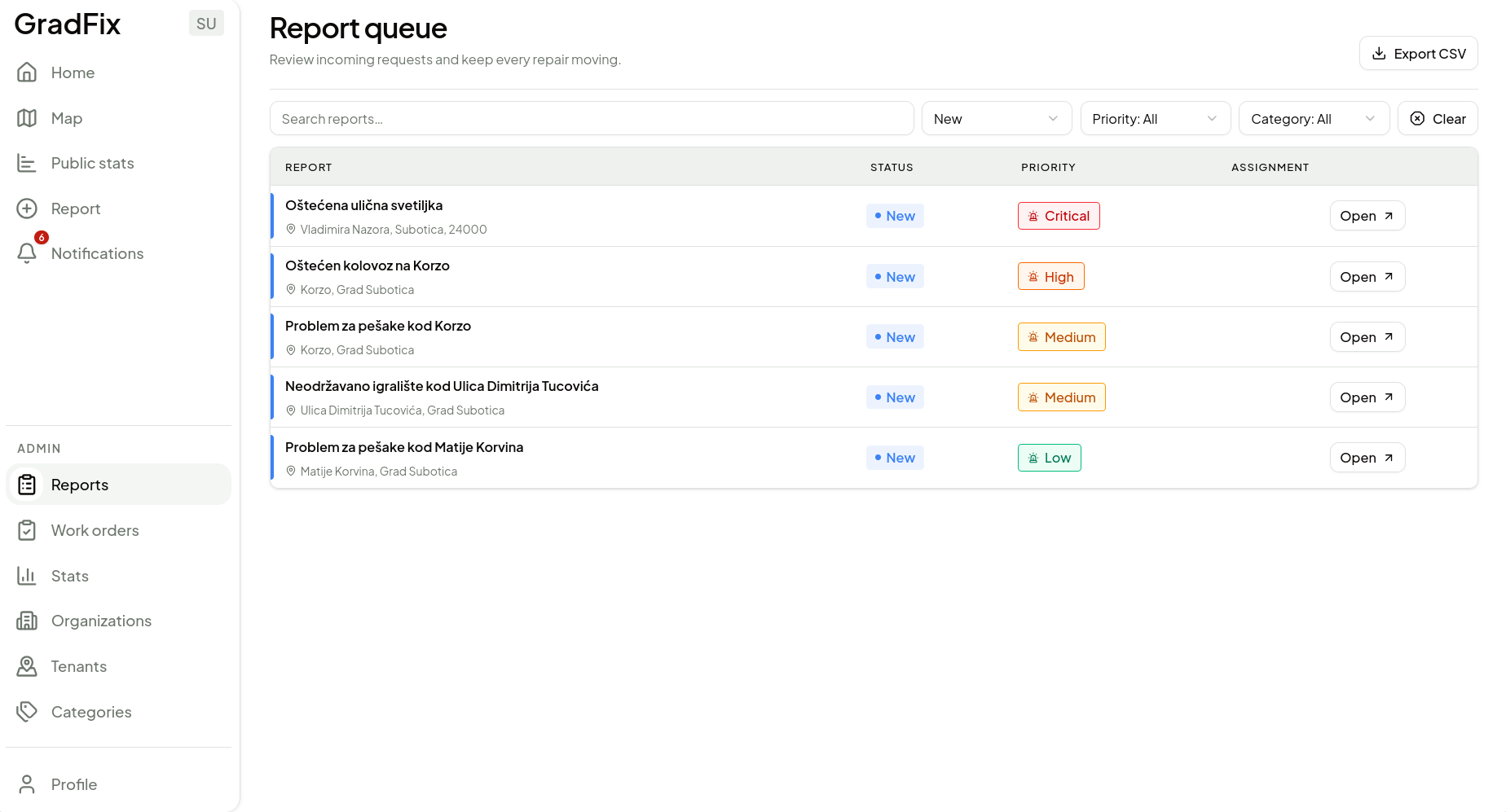

  • Admin queue with filtering, search, pagination, and CSV export
  • Work-order generation with PDF jobs and status-driven transitions
  • Real-time updates through Socket.IO
  • Push notifications and in-app notifications

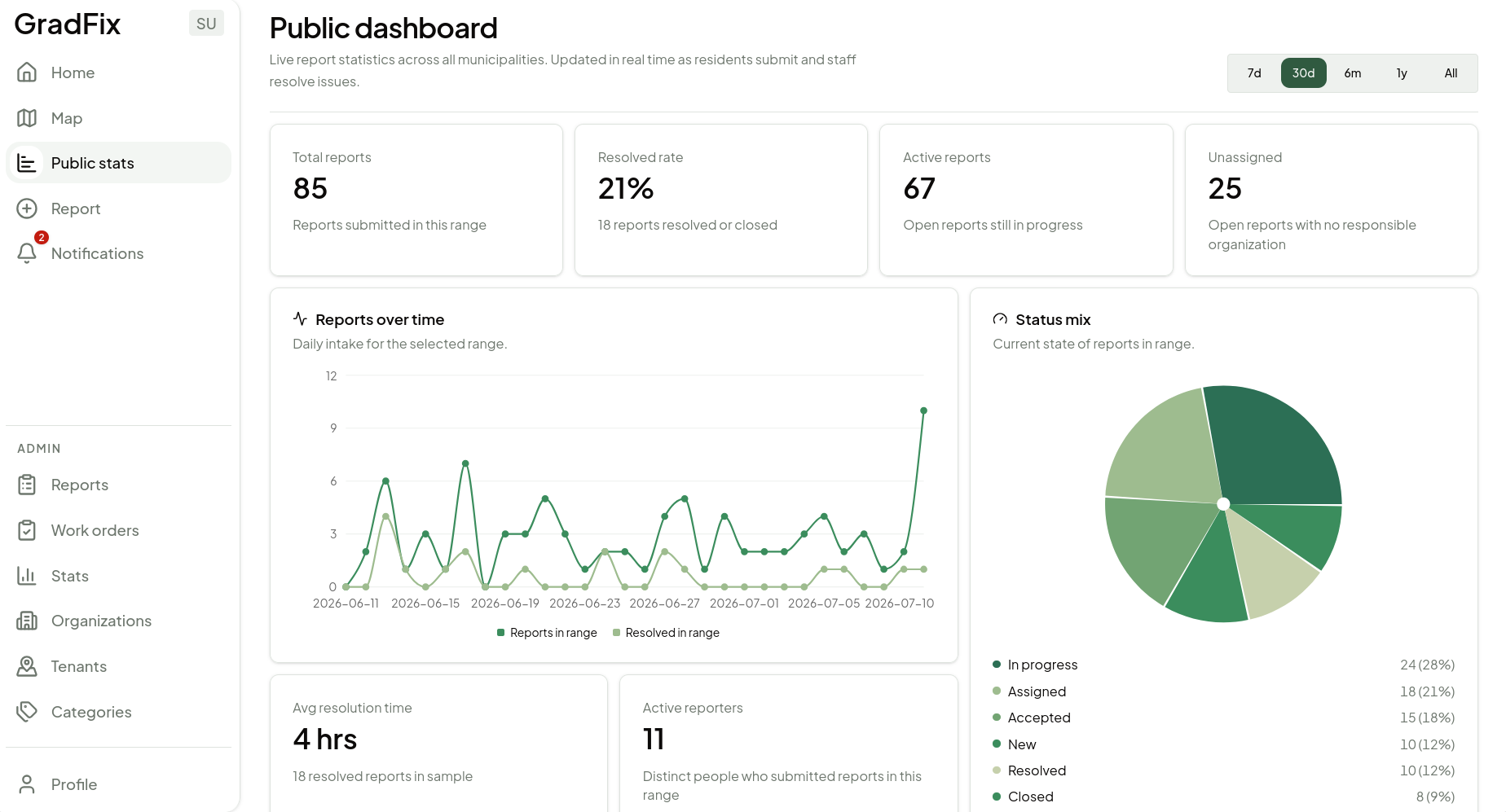

  • Public stats dashboards and resident leaderboard/gamification
  • AI-assisted photo analysis for category/title/description suggestions
  • Shared Zod schemas and enums across frontend and backend

Monorepo Structure

apps/
  api/        Express API, Prisma, Redis/BullMQ worker, PDF/email/notification jobs
  web/        Next.js 15 PWA for citizens, public map, and admin interface
packages/
  shared/     Shared Zod schemas, enums, and types
  config/     Shared TypeScript and ESLint config

Stack

  • pnpm workspaces + Turborepo
  • apps/web: Next.js 15 App Router, React 19, Tailwind CSS v4, shadcn/ui, TanStack Query, Leaflet, next-intl, Serwist PWA tooling
  • apps/api: Express, Prisma, PostgreSQL, Redis, BullMQ, Socket.IO, Zod, Pino
  • Shared contract layer in @gradfix/shared
  • Optional AI photo analysis through Gemini

Local Development

Prerequisites

  • Node.js 20+
  • pnpm 9+ (packageManager is pinned to pnpm@11.7.0)
  • Docker Desktop or local PostgreSQL + Redis

1. Install dependencies

pnpm install

2. Start infrastructure

If you use Docker for local services:

pnpm docker

This starts PostgreSQL and Redis from docker compose.

3. Configure environment

Create the API env file from the example:

cp apps/api/.env.example apps/api/.env

The default local setup expects:

  • PostgreSQL on localhost:5432
  • Redis on localhost:6379
  • Uploaded files stored in apps/api/uploads/ when running locally

4. Prepare the database

pnpm db:generate
pnpm db:migrate
pnpm db:seed

Optional:

pnpm db:seed:superadmin

5. Run the app

For normal development:

pnpm dev

Useful focused commands:

pnpm dev:web
pnpm dev:api

For a production-style local run:

pnpm start:local

That script builds the web app, then starts the API, worker, Prisma Studio, and the built Next.js app together.

Default Local URLs

  • Web app: http://localhost:3000
  • API: http://localhost:4000
  • OpenAPI JSON: http://localhost:4000/api/docs.json
  • Swagger UI: http://localhost:4000/api/docs

Key Product Flows

Citizen

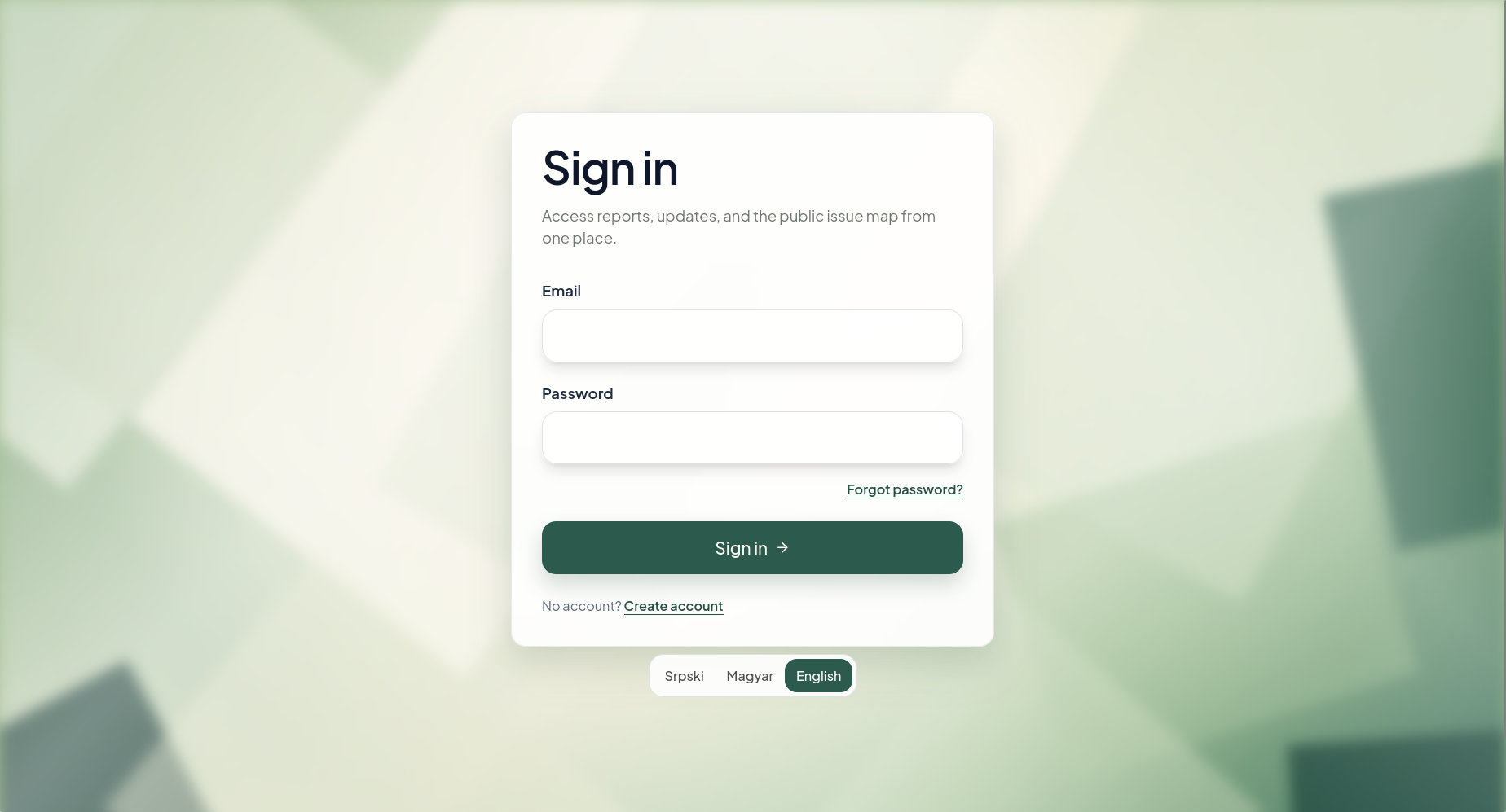

  • Register or log in

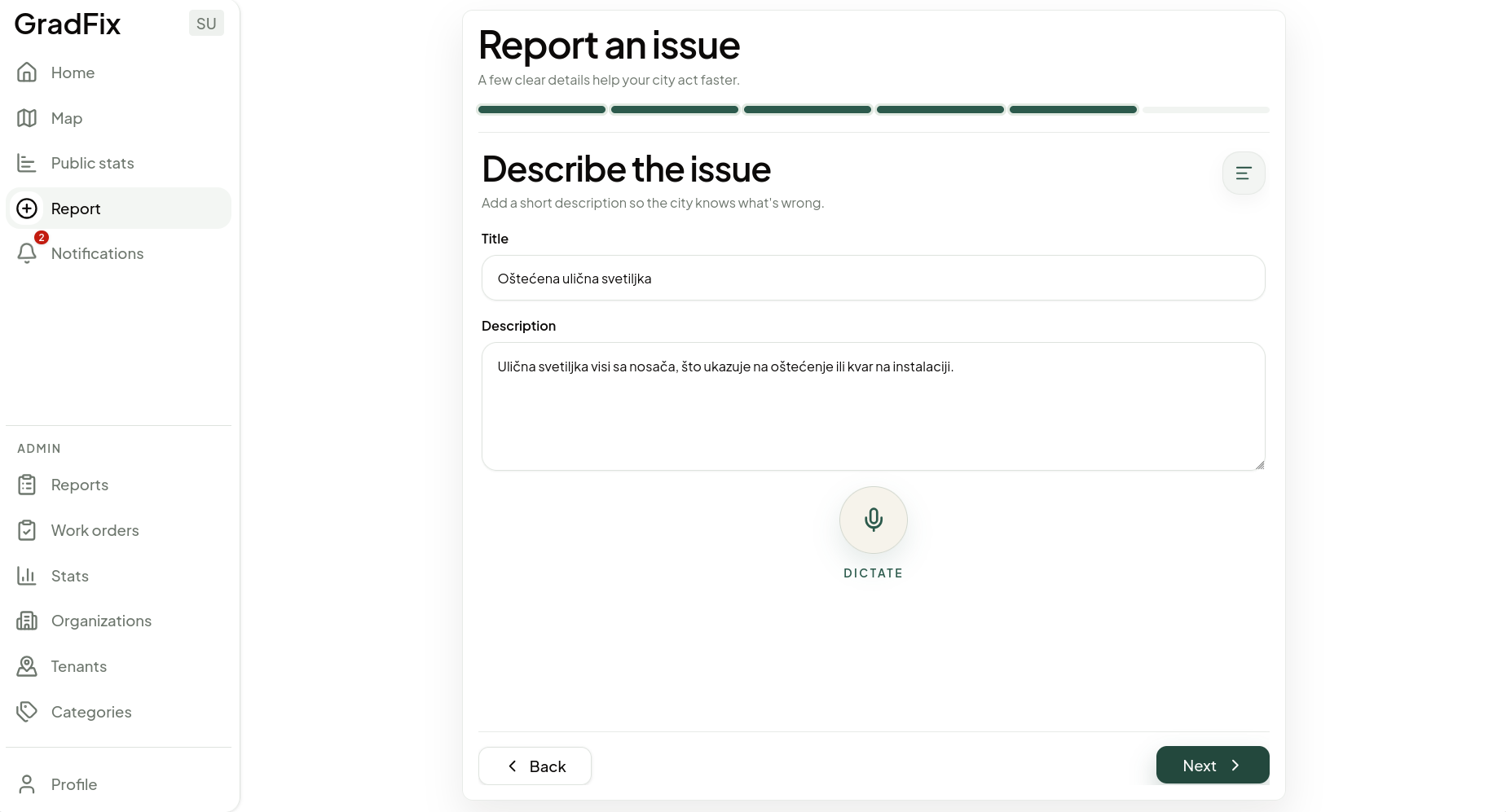

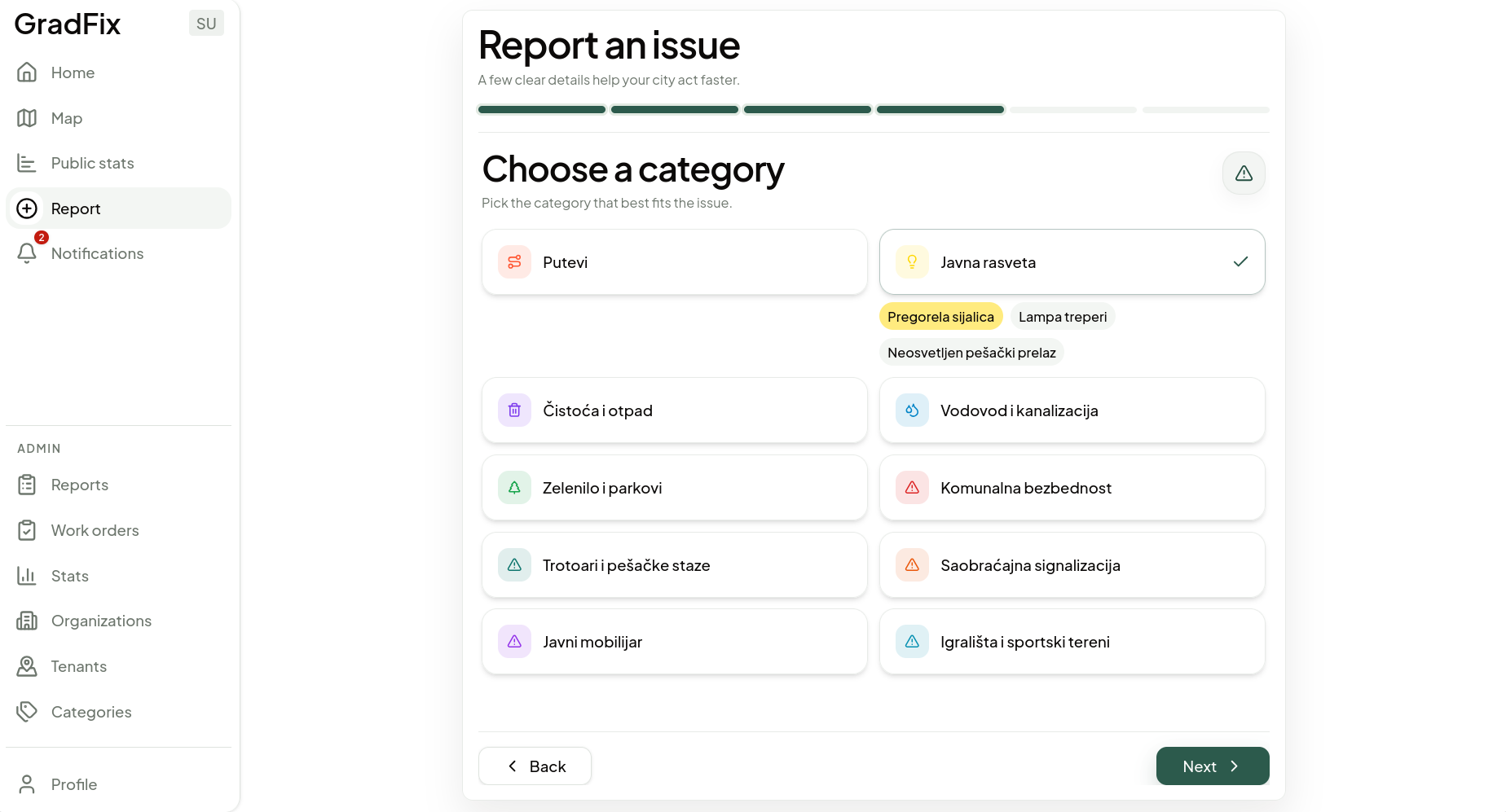

  • Create a report with photos, map location, category, and description

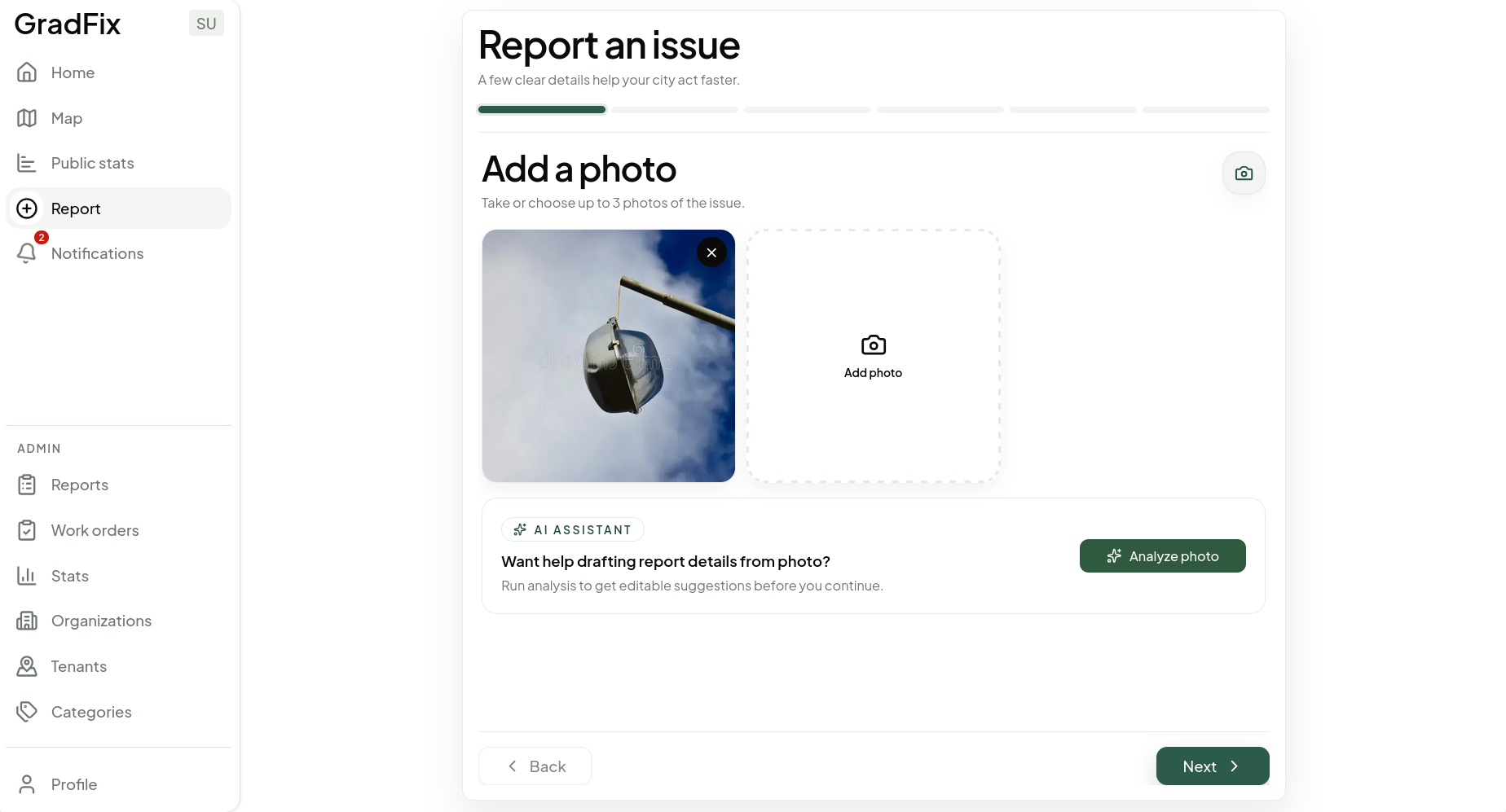

  • Get optional AI suggestions from the uploaded image

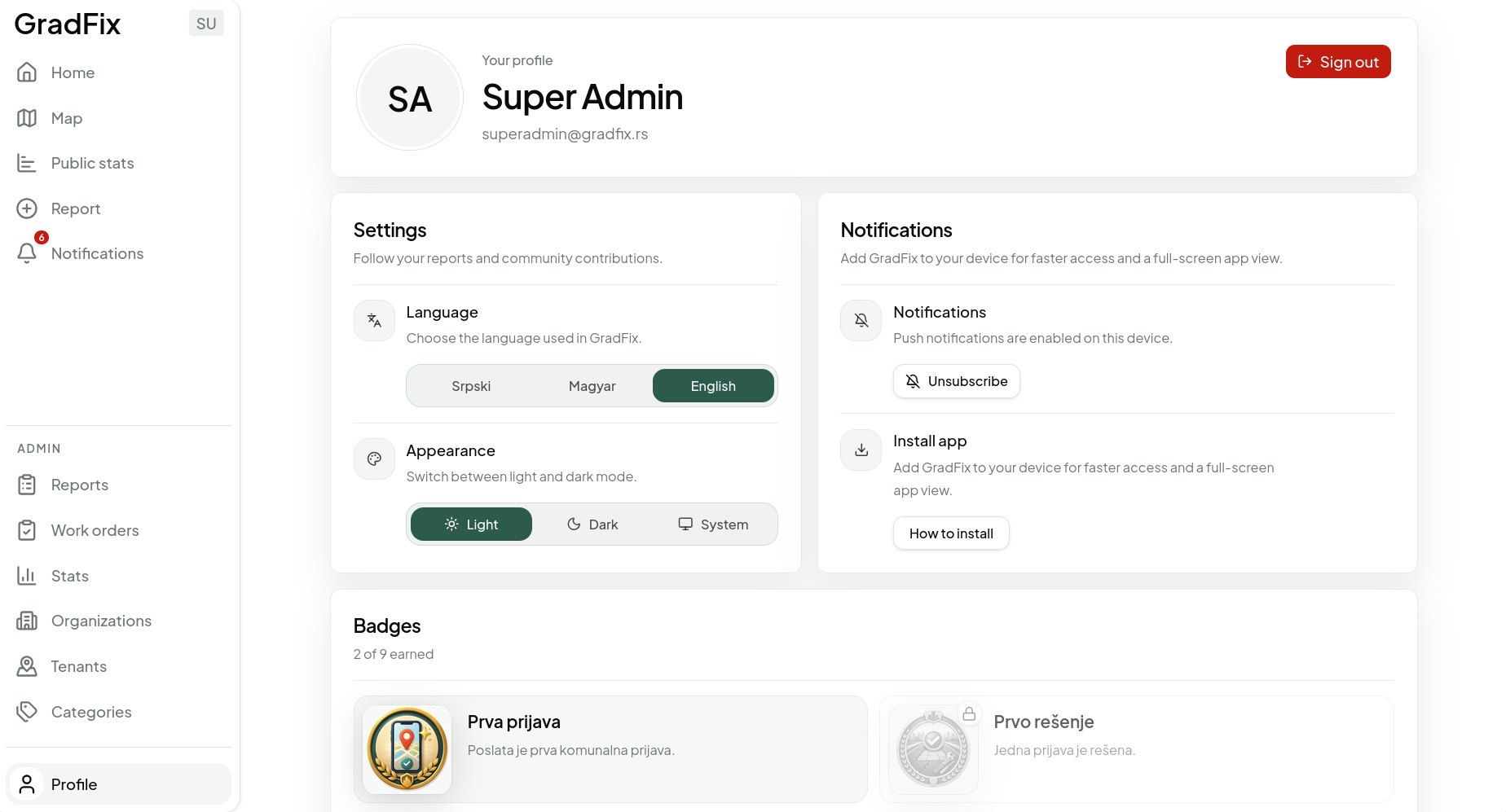

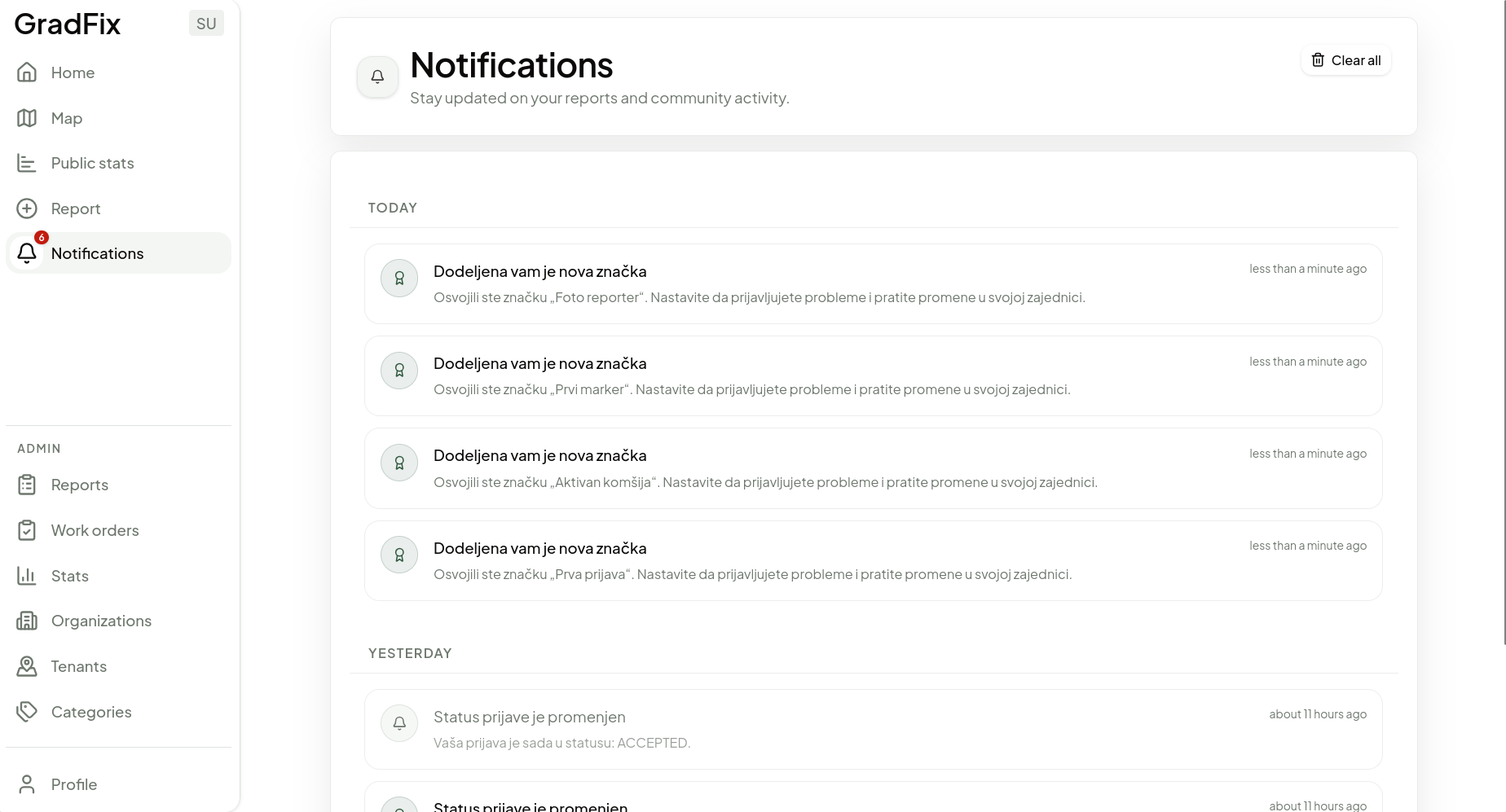

  • Track report status, comments, badges, and notifications
  • Browse the public map, heatmap, dashboard stats, and leaderboard

Municipal Staff

  • Review incoming reports in the admin queue
  • Filter by status, priority, category, assignment state, and search query
  • Transition report statuses through the operational workflow

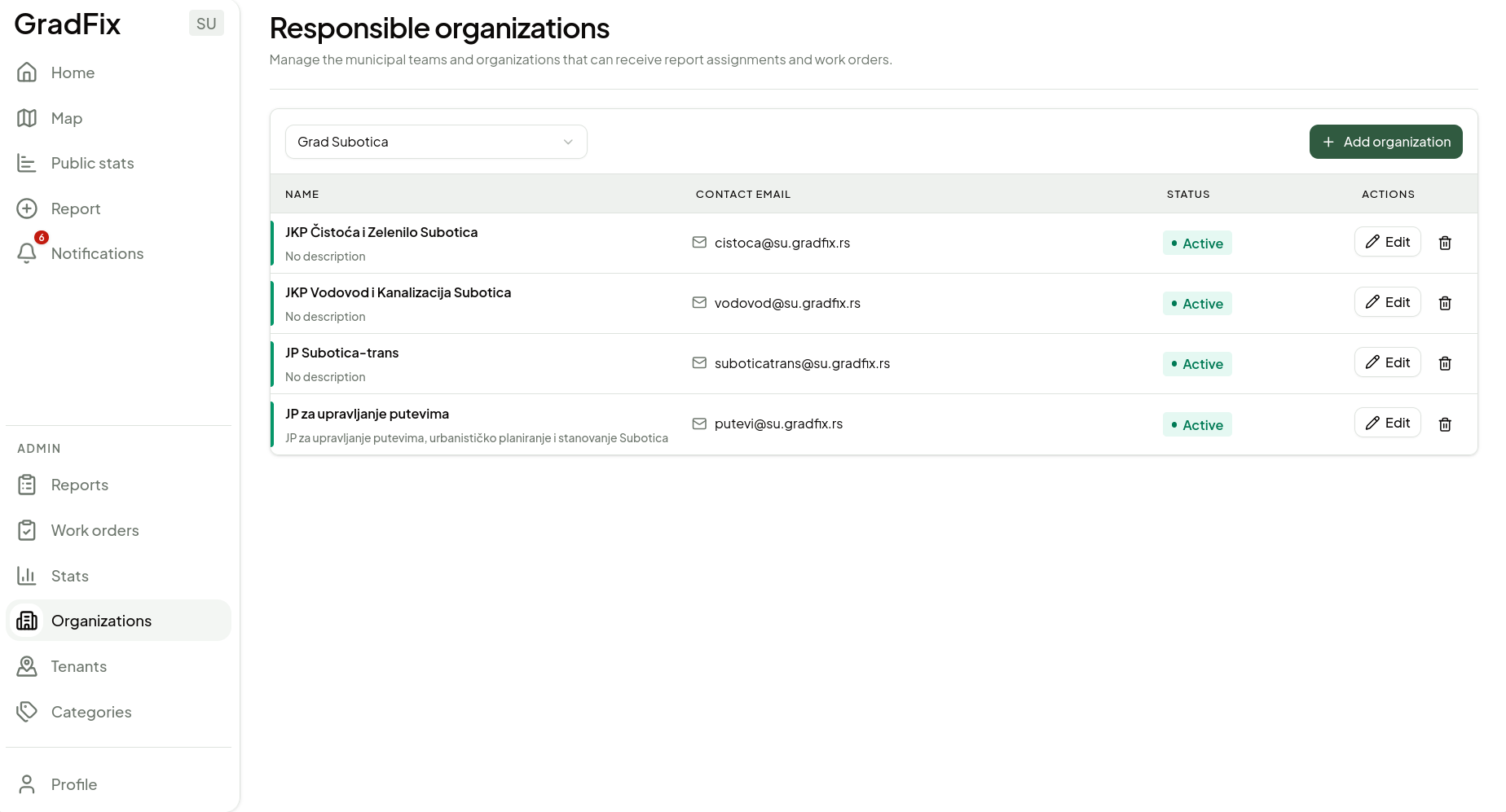

  • Assign responsible entities

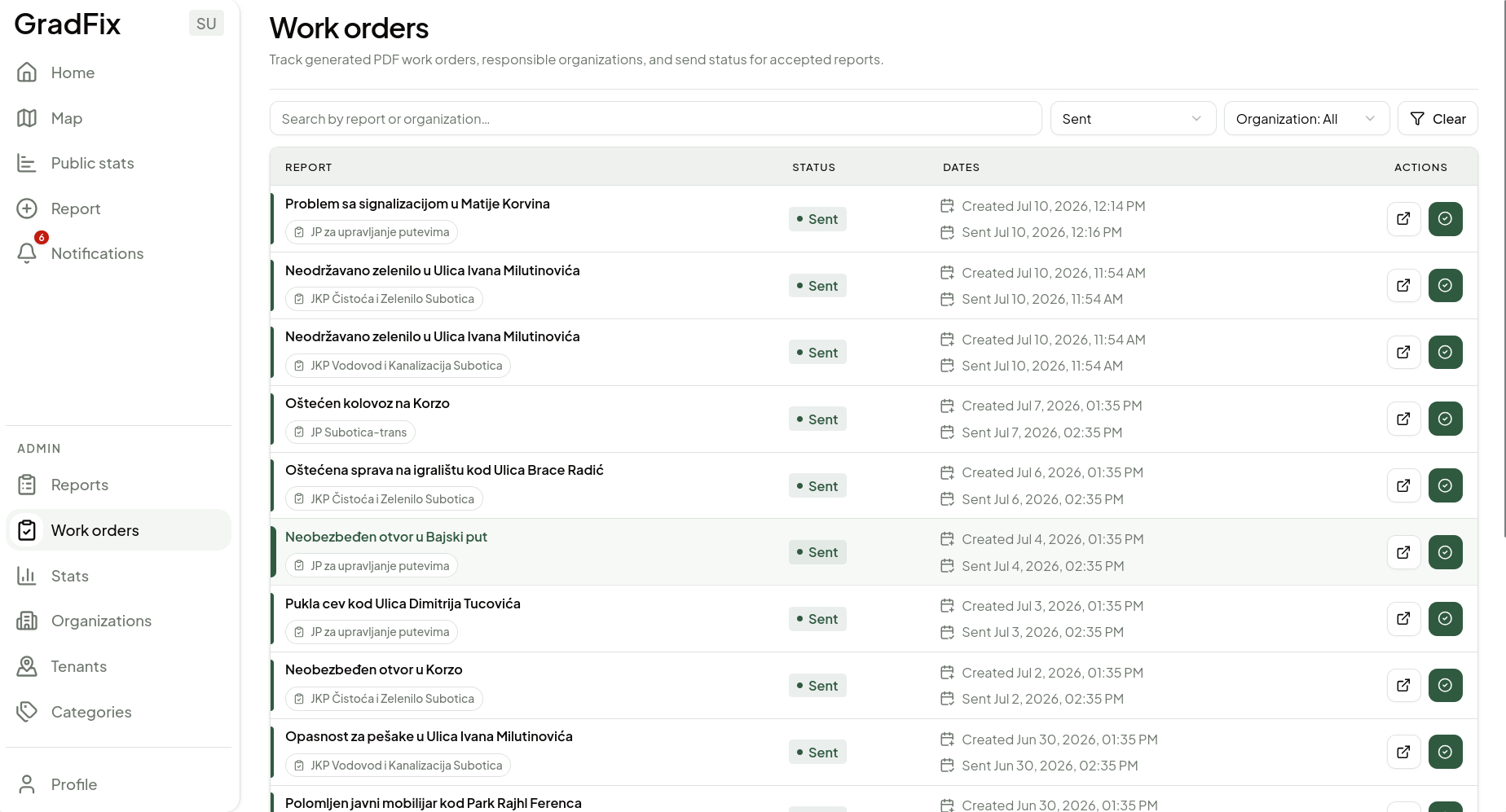

  • Generate and manage work orders
  • Export queue data to CSV
  • Monitor public/admin statistics

Architecture Notes

  • apps/web and apps/api share schemas through @gradfix/shared; contracts are defined once and reused

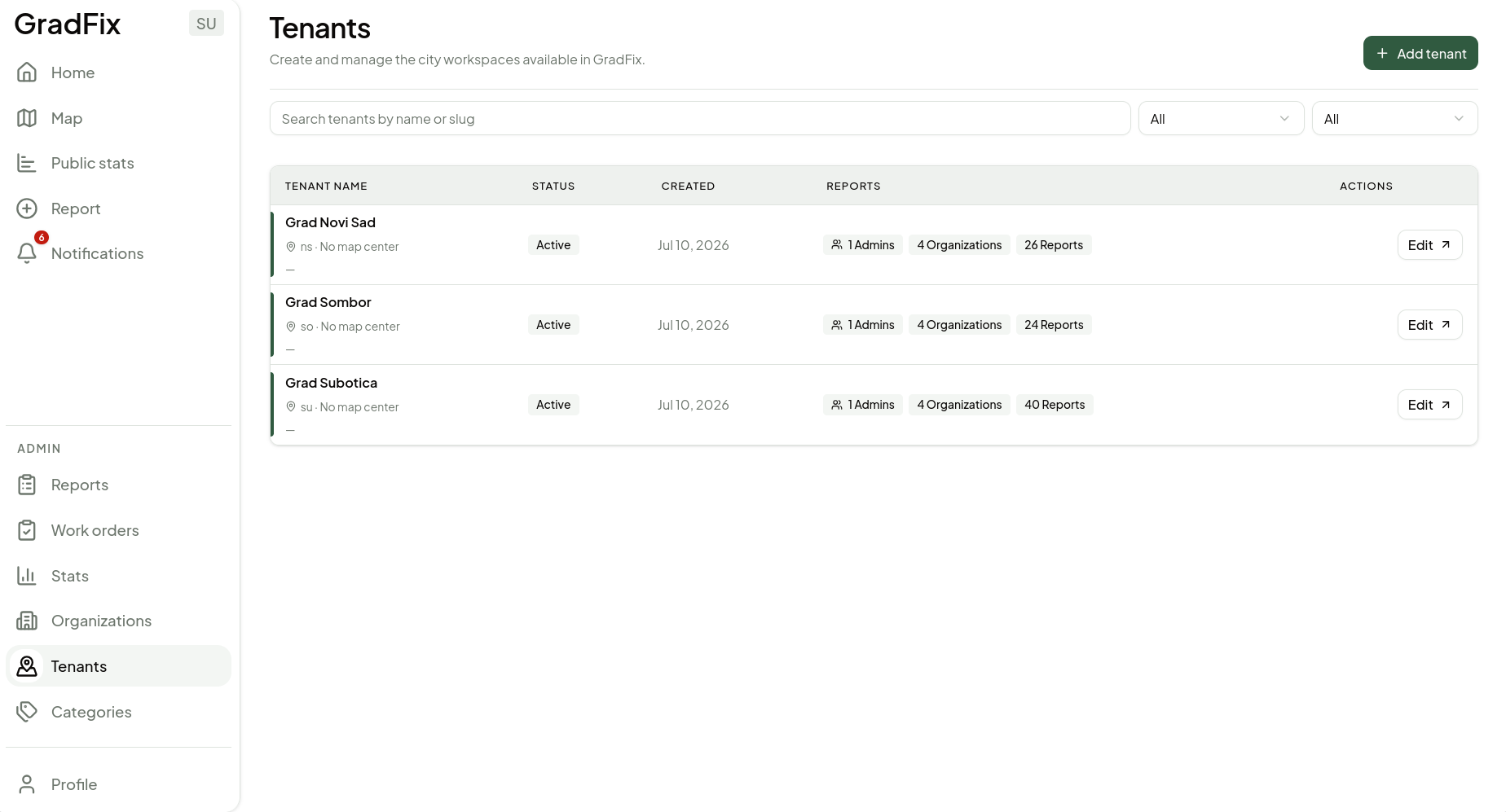

  • Tenant scoping is enforced through X-Tenant-Slug and auth context
  • Public report endpoints are intentionally cross-tenant so the national/public map can aggregate data

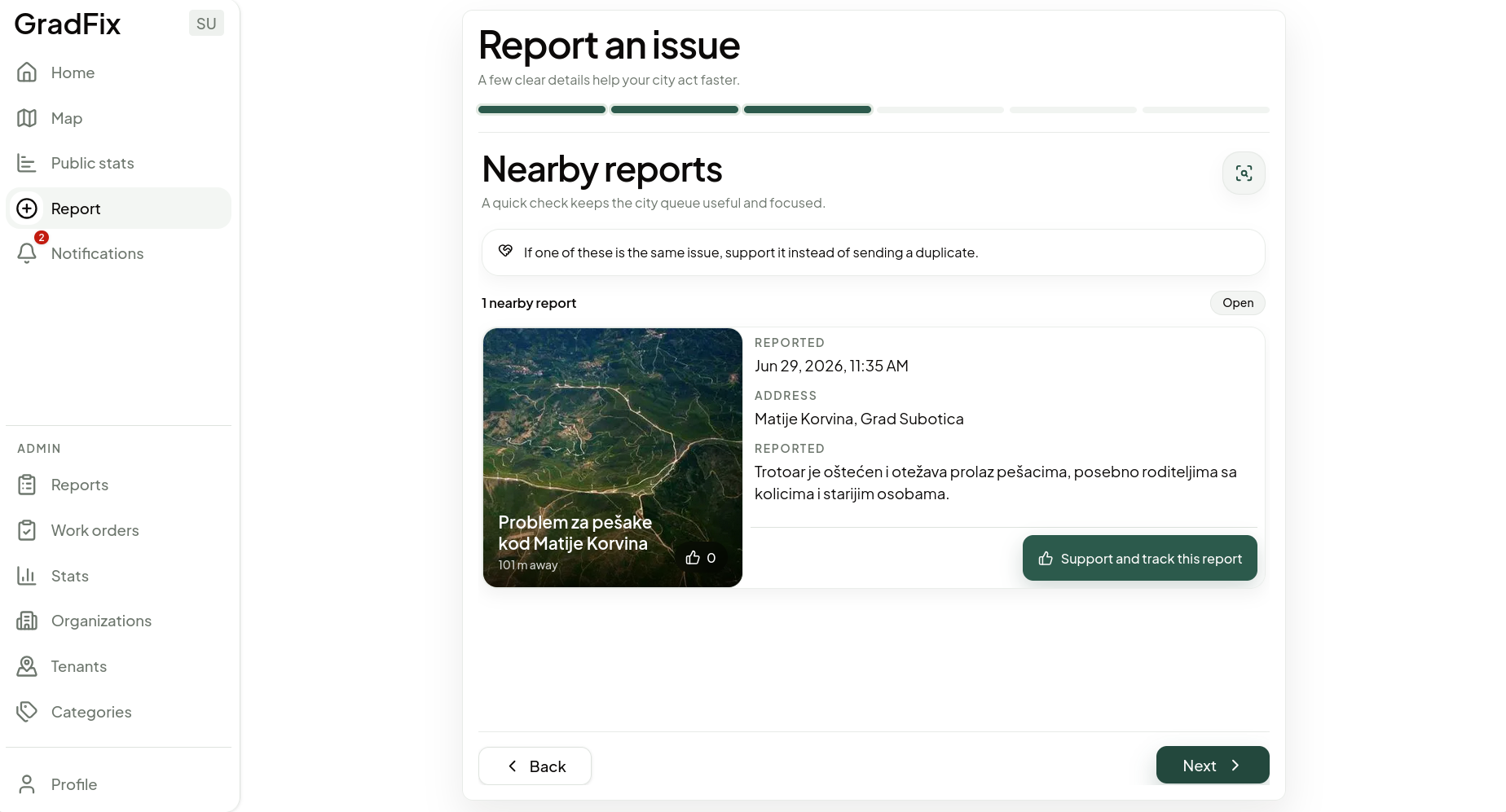

  • Background work is handled through BullMQ workers for image processing, geocoding, notifications, badges, deduplication, email, and work-order PDFs
  • The API serves uploaded files from /uploads
  • Storage supports local files and S3-compatible backends

Auth Contract

The API auth flow returns:

{
  "accessToken": "...",
  "refreshToken": "..."
}
  • Send Authorization: Bearer <token>
  • Send X-Tenant-Slug: <slug> for tenant-scoped requests
  • Refresh tokens via POST /api/v1/auth/refresh

Current Focus

GradFix is aimed at an advanced demo that proves a full civic operations loop rather than a static prototype. The implemented codebase already includes the citizen reporting flow, public map/stat surfaces, admin queueing, work orders, PWA setup, real-time updates, and shared contract infrastructure.
